help me with this lab
please write out procedure to do for this lab, make simple and specific
and please also give blank data tables for any necessary info we will collect during the lab
Upload or link the lab handout/manual page first. I need the actual lab instructions to write a correct step-by-step procedure and the right blank data tables.
Once you attach it, I’ll give you:
If you want, you can also paste the lab text here directly.
pdf is the lab and she also has a powerpoint to assist
Yes — with the PDF and your screenshots, there’s enough to write out a simple procedure and the blank tables.
This lab is basically: make serial dilutions, mix the ions for AX and BY_2, watch for whether a precipitate forms, and calculate Q_{sp} for each trial. Then you use the trial that is closest to “just forms precipitate / just saturated” to estimate K_{sp} for each salt. The slides specifically say to record the starting ion concentrations, calculate Q_{sp} at the instant of mixing, and note whether precipitation happened for each trial.
Get the stock solutions:
Label containers or wells for:
Make a plan to keep careful notes for every dilution and every reaction mixture, because your report must be specific about how each dilution and mixture was prepared.
Start with the AX solutions:
Prepare a series of diluted solutions from the stock solutions.
Keep track of the concentration of each diluted A^{2+} solution and each diluted X^{2-} solution you make.
Choose one A^{2+} solution and one X^{2-} solution to mix for Trial 1.
Measure the chosen volumes and combine them in the same well or test tube.
Immediately observe the mixture for precipitate formation.
For that trial, record:
Prepare serial dilutions for the B^{2+} and/or Y^{-} solutions as directed by your instructor.
Record exactly how each dilution was made:
Mix one B^{2+} solution with one Y^{-} solution for each trial.
Observe whether a precipitate forms.
For each trial, record:
Repeat until you find the concentration range where the mixture changes from no precipitate to precipitate.
Use the trial nearest saturation / first precipitate to estimate K_{sp} for BY_2, so Q_{sp} \approx K_{sp} at that point.
From the slides, for each trial you need:
And from the report instructions, you also need to be specific about:
| Dilution ID | Solution made | Stock concentration (M) | Volume of stock used (mL or drops) | Volume of water added (mL or drops) | Total volume (mL or drops) | New concentration (M) |
|---|---|---|---|---|---|---|
| 1 | A^{2+} or X^{2-} | |||||
| 2 | A^{2+} or X^{2-} | |||||
| 3 | A^{2+} or X^{2-} | |||||
| 4 | A^{2+} or X^{2-} | |||||
| 5 | A^{2+} or X^{2-} |
| Trial | [A^{2+}] starting solution (M) | [X^{2-}] starting solution (M) | Volume of A^{2+} mixed | Volume of X^{2-} mixed | Total mixed volume | [A^{2+}] at mixing (M) | [X^{2-}] at mixing (M) | Q_{sp} = [A^{2+}][X^{2-}] | Precipitate? | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ||||||||||
| 2 | ||||||||||
| 3 | ||||||||||
| 4 | ||||||||||
| 5 | ||||||||||
| 6 |
| Dilution ID | Solution made | Stock concentration (M) | Volume of stock used (mL or drops) | Volume of water added (mL or drops) | Total volume (mL or drops) | New concentration (M) |
|---|---|---|---|---|---|---|
| 1 | B^{2+} or Y^{-} | |||||
| 2 | B^{2+} or Y^{-} | |||||
| 3 | B^{2+} or Y^{-} | |||||
| 4 | B^{2+} or Y^{-} | |||||
| 5 | B^{2+} or Y^{-} |
| Trial | [B^{2+}] starting solution (M) | [Y^{-}] starting solution (M) | Volume of B^{2+} mixed | Volume of Y^{-} mixed | Total mixed volume | [B^{2+}] at mixing (M) | [Y^{-}] at mixing (M) | Q_{sp} = [B^{2+}][Y^{-}]^2 | Precipitate? | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ||||||||||
| 2 | ||||||||||
| 3 | ||||||||||
| 4 | ||||||||||
| 5 | ||||||||||
| 6 |
| Salt | Trial chosen as closest to saturation | Evidence used | Q_{sp} for that trial | Estimated K_{sp} |
|---|---|---|---|---|
| AX | ||||
| BY_2 |
If Q_{sp} > K_{sp}, a precipitate should form.
If Q_{sp} < K_{sp}, no precipitate should form.
If Q_{sp} \approx K_{sp}, the solution is right at saturation and that trial is the one you use to estimate K_{sp}. This matches the concepts your slide asks you to think about.
If you want, next I can turn this into:
can you send me back data tables as a pdf file to print or a word document

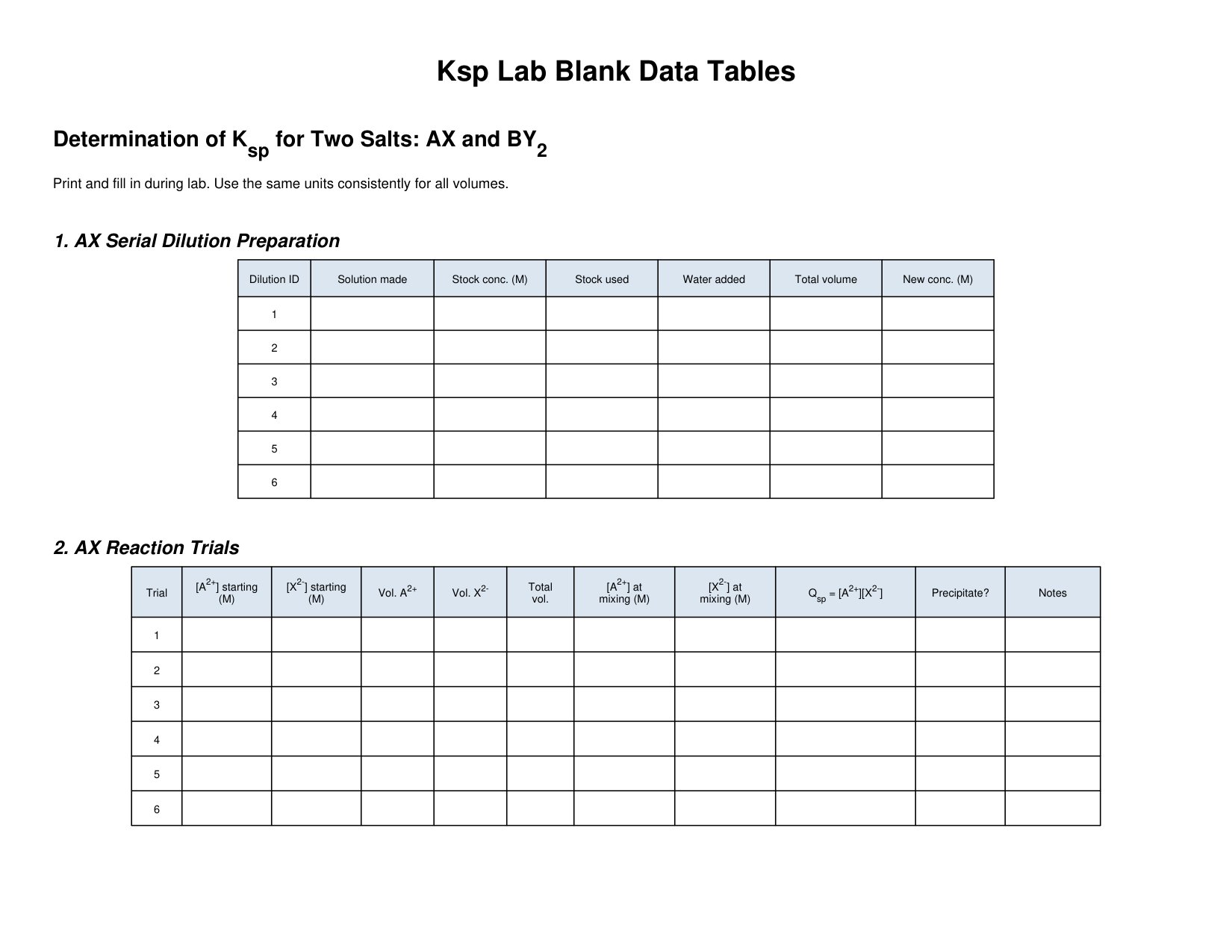

Yes — I made the PDF and it’s ready to print.
I fixed the formatting so the headers display correctly and saved it as Ksp Lab Blank Data Tables.pdf.
If you want, I can also make a Word version next.
how to setup the experiment break it down with materials
Here’s a simple setup breakdown based on the lab slides you shared. The experiment is to make serial dilutions of the ion solutions, then mix pairs of solutions and check whether a precipitate forms so you can compare Q_{sp} to K_{sp}. The slides show the stock solutions for AX as 0.50 M A(NO_3)_2 and 0.50 M K_2X, and for BY_2 as 0.332 M B(NO_3)_2 and 0.50 M KY.
Put on goggles first. Clear your area and label sections for:
Keep the four stock solutions separate so you do not mix droppers between chemicals.
Place the four stock solutions in front of you:
These are your starting chemicals for the two salts you are testing.
Set up several labeled tubes or wells for diluted solutions. You will need separate dilution sets for:
Label them clearly, like:
Using stock solution plus water, prepare weaker concentrations step by step.
For each dilution, write down:
The report slide says to be specific about how each dilution was prepared, so record every step as you do it.
Choose one diluted A^{2+} solution and one diluted X^{2-} solution. Mix them in one clean well or test tube.
For each AX trial, record:
Choose one diluted B^{2+} solution and one diluted Y^{-} solution. Mix them in a clean well or tube.
For each BY_2 trial, record:
After each mixture, look for:
The point of the experiment is to find the trial near the boundary between no precipitate and precipitate, because that is where Q_{sp} is about equal to K_{sp}.
If you want, I can next turn this into a super short numbered methods section you can bring to lab, like a checklist.
yes checklist with specific element names and molarity if applicable and concentrations and also how to set up well plate
Yes — but one important thing first: the lab pages you linked only give placeholder chemical names, not real element names. They show A(NO_3)_2, K_2X, B(NO_3)_2, and KY, with stock concentrations of 0.50 M for A(NO_3)_2, 0.50 M for K_2X, 0.332 M for B(NO_3)_2, and 0.50 M for KY. I don’t see actual identities like calcium nitrate or silver nitrate anywhere in the linked lab pages, so I shouldn’t invent them.
So here’s a specific checklist using the names the lab actually gives.
The procedure in the handout is to combine the AX pair first, then the BY_2 pair, then repeat at diluted concentrations and check for precipitate formation.
Use one well plate and divide it into sections.
Top rows: AX
Bottom rows: BY_2
If your plate has many wells, label reaction wells like:
If you are using a smaller plate, just number the wells on paper and keep a matching chart.
Label four containers:
Do not use the same dropper for different chemicals.
That prevents contamination.
Suggested:
In Row A, make your dilution set for the AX reactants:
For each dilution, record:
The slides say each AX trial needs the starting [A^{2+}] and [X^{2-}], then Q_{sp} = [A^{2+}][X^{2-}], and whether AX precipitated.
Use Row B for actual AX mixtures.
For each AX trial:
In Row C, make dilution sets for:
For each dilution, record:
The slides say each BY_2 trial needs the starting [B^{2+}] and [Y^-], then Q_{sp} = [B^{2+}][Y^-]^2, and whether precipitate formed.
Use Row D for actual BY_2 mixtures.
For each trial:
Record:
Record:
I still do not see exact required mixing volumes or exact numbers of drops in the linked lab pages. So I can give you the setup structure, but not a truthful “add exactly 5 drops of this and 5 drops of that” unless that is on a page you haven’t shown yet. If you send that page or the PowerPoint slide with the well-plate directions, I can turn this into a fully exact checklist with the real drop counts.
If you want, next I can make you:
if this is an example- the conclusion answers may have been manipulated by teacher but from the data what are the unknown ksp's for for a and x
From the example data, the unknown K_{sp} for AX is about 8.5 \times 10^{-5}.
Here’s why. In the example table for AX:
That means the real K_{sp} must be between those two values:
6.97 \times 10^{-5} < K_{sp} < 1.0 \times 10^{-4}
The example report says they averaged those boundary trials to estimate K_{sp}.
So:
K_{sp} \approx \frac{1.0 \times 10^{-4} + 6.97 \times 10^{-5}}{2}
= 8.485 \times 10^{-5}
Rounded:
K_{sp} \approx 8.49 \times 10^{-5}
The abstract on page 2 gives essentially the same result, written as 8.42 \times 10^{-5} for AX, which is close enough that the small difference is probably from rounding or teacher edits.
For your wording:
If you want, I can also do the same breakdown for BY_2 and show exactly how the boundary-trial logic works.
yes
For BY_2, the example’s estimated unknown K_{sp} is about 4.4 \times 10^{-6}. That value is stated directly in the example abstract and again in the later results/discussion area.
The logic is the same as AX: find the boundary trials where one trial is just below precipitation and the next is just above it, then estimate K_{sp} from the Q_{sp} values near that boundary. The example explicitly says they used the average of boundary trials for AX, and the BY_2 section on page 5 points to B4 and B5 as the key boundary region, along with concentrations at mixing and the final K_{sp} value.
From page 5, the listed mixing concentrations are:
Using the lab expression for this salt,
Q_{sp} = [B^{2+}][Y^-]^2
so
Q_{sp} = (0.0125)(0.0188)^2 \approx 4.42 \times 10^{-6}
That matches the reported example value:
K_{sp} \approx 4.4 \times 10^{-6}
So your two example unknowns are:
If you want, I can next write a very short conclusion paragraph using those values in beginner-friendly lab-report wording.
okay so this is the data we got in class
FOR equation B and Y the teacher said our answer should be around 10 to the negative 6 for Q but our data is way off why
PART 1
Serial Dilution:
Trial
Initial
A and [K2X]
At mixing
[A2+]
At mixing
[X-2]
PPT?
Qsp
1
0.05
.025
.025
no
6.25E-4
2
.15
.075
.075
yes
5.63E-3
Kksp: 3.125E-4
Serial Dilution:
PART 2
NEED TO CORRECT
Trile
Initial
[B(NO3)2
Initial
[KY]
At mixing
[B2+]
At mixing
[Y-2]
PPT?
Qsp
1
.166
.25
.083
.125
no
1.0E-2
3
0.50
.3
.0996
.15
Yes
1.25E-2
Ksp:
Your Part 2 is off because the Q_{sp} expression is being used wrong.
For BY_2, the lab slide says:
Q_{sp} = [B^{2+}][Y^-]^2
—not just [B^{2+}][Y^-].
So for your first Part 2 trial, using the numbers you wrote:
Then:
Q_{sp} = (0.083)(0.125)^2
Q_{sp} = (0.083)(0.015625) \approx 0.00130
Q_{sp} \approx 1.30 \times 10^{-3}
That is not 1.0 \times 10^{-2}. So your first issue is a calculation/setup mistake.
For your second trial:
Q_{sp} = (0.0996)(0.15)^2
Q_{sp} = (0.0996)(0.0225) \approx 0.00224
Q_{sp} \approx 2.24 \times 10^{-3}
So that is also not 1.25 \times 10^{-2}.
Because the true K_{sp} for the example BY_2 system is around 4.4 \times 10^{-6}, and the boundary trial near first precipitation should give a Q_{sp} in that same ballpark.
Your values are around 10^{-3}, which is about 1000 times too large. That usually means one of these happened:
You used the stock concentrations instead of the actual diluted concentrations.
This is the most likely problem.
Your “at mixing” concentrations were not diluted correctly.
If you mix equal volumes, the concentration at mixing should be half of the initial solution concentration.
You may have copied the wrong initial concentrations from the serial dilution step.
The ion concentration for Y may have been treated incorrectly.
But since KY gives one Y^-, that part is probably fine if the chemical is written that way.
You wrote for Trial 1:
That suggests you mixed equal volumes, because each concentration got cut in half. That part is fine.
But if those are really your concentrations, then your experiment is nowhere near the 10^{-6} range. Even the corrected Q_{sp} is still:
1.30 \times 10^{-3}
which is much larger than 10^{-6}.
So the real issue is probably earlier: your serial dilutions were not diluted enough, or the concentrations copied into Part 2 are not the actual final diluted trial concentrations.
The example BY_2 trial near the correct answer used much smaller mixing concentrations:
Then:
Q_{sp} = (0.0125)(0.0188)^2 \approx 4.4 \times 10^{-6}
Your concentrations:
are much bigger than:
So naturally your Q_{sp} comes out way bigger.
Your Part 2 is way off because:
Q_{sp} = (0.083)(0.125)^2 = 1.30 \times 10^{-3}
Q_{sp} = (0.0996)(0.15)^2 = 2.24 \times 10^{-3}
Still far above 10^{-6}.
If you want, I can take your Part 2 numbers and help you rebuild the table correctly step by step to figure out what concentration should have been used.
she said we werent supposed to square it and assume 1 to 1 stoich_ so what is our problem why is the data so off
If your teacher said to treat it as 1:1 for this class setup, then use:
Q_{sp} = [B^{2+}][Y^-]
With that rule, your numbers become:
Q_{sp} = (0.083)(0.125) = 0.010375 \approx 1.04 \times 10^{-2}
Q_{sp} = (0.0996)(0.15) = 0.01494 \approx 1.49 \times 10^{-2}
So your table values near 10^{-2} are actually consistent with that 1:1 assumption.
Then the issue is not the squaring. The real problem is that your concentrations are way too large.
If the expected Q is around 10^{-6}, then the numbers being multiplied should be much smaller.
For example:
So the problem is almost certainly one of these:
This is the most likely.
Your listed “initial” concentrations are:
Those are still very concentrated. They do not look like the final tiny serial-dilution values you’d expect for a 10^{-6}-ish result.
If you grabbed one of the first dilution steps, the concentrations would still be large, and Q would come out too big.
If the dilution factor was supposed to continue across several wells and you only halved once, your concentrations would stay much too high.
For example, if you diluted in the well plate first and then mixed again, you may need one more dilution step in the concentration calculation.
To get Q \approx 10^{-6} with 1:1 math:
If the two ions are about equal, then each one would need to be around:
\sqrt{10^{-6}} = 10^{-3}
So each mixed concentration should be around 0.001 M, not:
Your concentrations are about 100 times too big, and when multiplied that makes Q about 10,000 times too big.
That’s why you’re landing near 10^{-2} instead of 10^{-6}.
If the class is using 1:1:
So the real error is likely:
Look back at:
If you want, send me the actual serial dilution numbers or a photo of your Part 2 setup, and I’ll pinpoint exactly where the concentration error happened.
so how did we get a precipitate with those numbers
Because with your numbers, Q is much bigger than the cutoff, so precipitation makes sense.
If your class is treating it as 1:1, then for Trial 3:
Q = [B^{2+}][Y^-] = (0.0996)(0.15) = 1.49 \times 10^{-2}
That is a pretty large ion product. If the threshold for precipitation is much smaller, then once you mix them, the solution is supersaturated, so a precipitate should form.
So the precipitate itself is not the weird part. The weird part is this:
Those two things do not match. That means one of these is true:
This is most likely.
If the concentrations written in the table are too high, then your calculated Q will also be too high, even if the observed precipitate is real.
A trial can absolutely precipitate at 10^{-2}. That just means it is well above the precipitation threshold.
So if your teacher wanted the trial closest to K_{sp}, this trial may simply be too concentrated to use for the final estimate.
Those are not always the same.
To estimate K_{sp}, you usually want the trial closest to the change point:
Then the true value lies between those two.
So yes, you can definitely get a precipitate with your numbers. In fact, your numbers strongly predict one.
A precipitate forms when:
Q > K_{sp}
So if your calculated Q is around 10^{-2}, then precipitation is exactly what you’d expect if the true K_{sp} is smaller than that.
Your teacher’s “around 10^{-6}” comment probably means:
You got a precipitate because your mixture, as recorded, was concentrated enough that Q came out very large. That would push the system past saturation and form solid.
What’s off is not “why did it precipitate?”
What’s off is “why are these the concentrations being used for the final K_{sp} estimate?”
If you want, I can help you figure out which of your Part 2 trials should actually be used to estimate K_{sp} from the precipitate/no-precipitate pattern.
Shared by Madison Meyer
